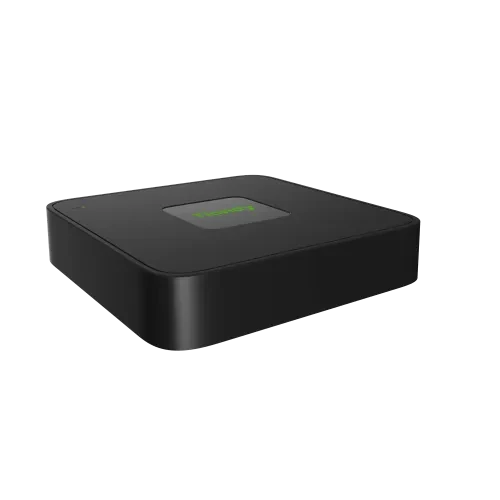

Tiandy TC-R3104 4 Channel PoE NVR

(0) 0 Reviews 0 Orders 0 Wish listed

Product Code: 157815

Key Features

Model: TC-R3104
Up to 4-ch IP Camera Inputs
Up to 6TB Capacity for Each HDD
1×HDMI Output
HDMI Output at Up to 1080P Resolution

AED4,500.00 ~~AED4,950.00~~

Quantity :

Quantity:

Total price :

(Tax : )

Overview
Reviews

Specification

Audio and Video
IP Camera Input	4 Channel
Display
Interface	1 HDMI
Resolution	5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Decoding Capacity	Preview Decoding Capability: 5MP(30fps)×1, 4MP(30fps)×1, 3MP(30fps)×1, 1080P(30fps)×2, 720P(30fps)×4, 4CIF(30fps)×4 Playback Decoding Capability: 5MP(30fps)×1, 4MP(30fps)×1, 3MP(30fps)×1, 1080P(30fps)×2, 720P(30fps)×4
Recording
Record Mode	Alarm Recording; Schedule Recording
Video Detection And Alarm
Video Detection	Motion Detection; Mask Alarm
Playback And Backup
Sync Playback	1CH 5.0MP, 1CH 4.0MP, 1CH 3.0MP, 2CH 1080p
Search Mode	Channel number / recording type / date
Playback Function	Day View, Hour View, Back Step, Rewind, Pause, Play, Fast Forward, Slow, Step, Full Screen, Snap, Sound On/Off, Zoom
Backup Mode	FAT32 USB Device/ Network
Network
Interface	1 RJ45 Port (10/100Mbps)
Network Function	TCP/IP, DHCP, UDP, SMTP, NTP, CloudSEE
Smart Phone	Support iOS, Android App
Storage
eSATA	1 SATA interfaces
Auxiliary Interface
USB	2×USB2.0
Power
Power Supply	DC48V 1A
Power Consumption	<10W(without HDD&without PoE)
Component Environment
Storage Conditions	Up to 6 TB capacity for each HDD
Construction
Dimensions	200(L)x200(W)x43(H)mm
Net Weight	0.4kg
Gross Weight	0.85kg
Warranty
Manufacturing Warranty	1 year

Description

Tiandy TC-R3104 4 Channel PoE NVR

The Tiandy TC-R3104 is a feature-rich 4-channel PoE NVR (Network Video Recorder) that is intended to provide effective and dependable video surveillance management for small to medium-sized environments. This NVR supports up to four IP camera inputs, providing flexibility and scalability for a variety of surveillance applications. With an access bandwidth of 60Mbps and a forwarding bandwidth of 40Mbps, the TC-R3104 provides smooth and reliable video data transfer, making it suitable for settings that require consistent video monitoring and recording. The TC-R3104 NVR supports a broad range of video compression formats, including sophisticated S+265 and H.265, as well as S+264 and H.264, and may greatly reduce bandwidth and storage use while maintaining video quality. S+265 compression is particularly efficient, lowering storage space needs. The S+265 compression, in particular, is highly efficient, reducing storage space requirements by up to 75%, which is essential for long-term video retention and cost-effective storage management. The TC-R3104 NVR has remarkable decoding capabilities, allowing you to preview and play back a variety of high-definition video resolutions. It can decode one channel of 5MP, 4MP, or 3MP video at 30fps, or two channels of 1080P video at 30fps, resulting in crisp and detailed images. This makes the Tiandy TC-R3104 ideal for applications that require high-resolution monitoring, such as retail, businesses, or residential buildings. The TC-R3104 features 4-channel synchronous playback, allowing users to watch footage from numerous cameras at once, which is critical for complete event analysis and situational awareness. The device also has substantial storage choices, with support for hard drives of up to 6TB apiece, allowing for enormous video archives that can be kept for extended periods of time. The NVR includes an HDMI output that supports up to 1080P quality for high-definition presentation on connected displays. This guarantees that video feeds are shown with maximum clarity and detail, which is critical for both live monitoring and post-event analysis. The Tiandy TC-R3104 boasts excellent connectivity, including a 10/100 Mbps self-adaptive RJ-45 Ethernet connection for network communication and four PoE (Power over Ethernet) RJ-45 ports that are likewise self-adaptive at 10/100 Mbps. These PoE ports make installation easier by delivering both power and data to the attached IP cameras over a single Ethernet connection, eliminating the need for extra power supply and wiring. The Tiandy TC-R3104 is a powerful and flexible 4-channel PoE NVR with excellent video management capabilities, high bandwidth and storage efficiency, and wide support for high-definition video output.

Buy Tiandy TC-R3104 4 Channel PoE NVR From Fast Deals

In Bangladesh, you can get original Tiandy TC-R3104 4 Channel PoE NVR From Fast Deals. We have a large collection of latest Tiandy NVR to purchase. Order Online Or Visit your Nearest Fast Deals Shop to get yours at lowest price. The Tiandy TC-R3104 4 Channel PoE NVR comes with 1 Years of warranty.

What is the price of Tiandy TC-R3104 4 Channel PoE NVR in Bangladesh?

The latest price of Tiandy TC-R3104 4 Channel PoE NVR in Bangladesh is 4,500৳. You can buy the Tiandy TC-R3104 4 Channel PoE NVR at best price from our website or visit any of our showrooms.
