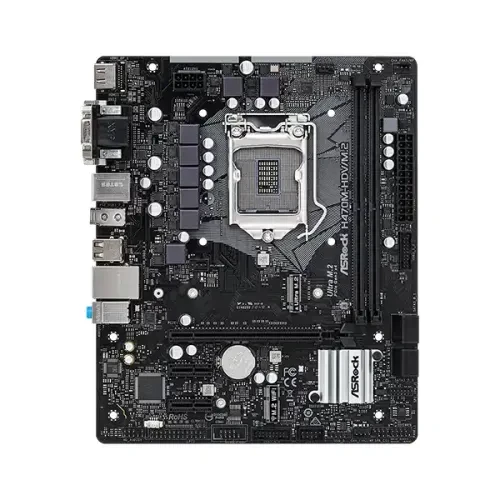

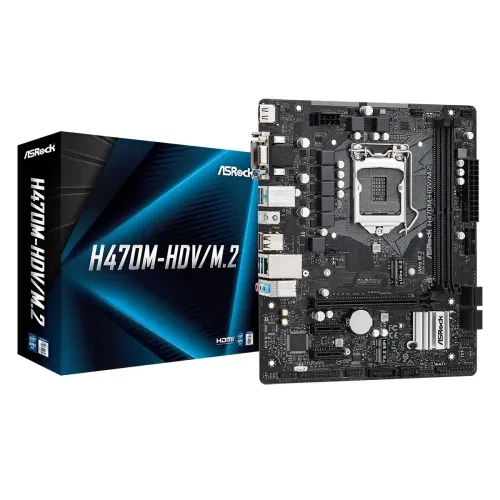

ASRock H470M-HDV/M.2 10th Gen Micro ATX Motherboard

(0) 0 Reviews 0 Orders 0 Wish listed

Product Code: 134498

Key Features

Model: H470M-HDV/M.2
CPU Support: 10th Gen Intel Core Processors (Socket 1200)
RAM Support: DDR4 2933 MHz
Graphics Output: HDMI, DVI-D, D-Sub
4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)

AED8,800.00 ~~AED9,900.00~~

Quantity :

Quantity:

Total price :

(Tax : )

Overview
Reviews

Specification

Basic Information
Supported CPU	Supports 10th Gen Intel Core Processors (Socket 1200) Digi Power design 7 Power Phase design Supports Intel Turbo Boost Max 3.0 Technology
Chipset	Intel H470
BIOS	128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support CPU Core/Cache, GT, DRAM, VPPM, PCH 1.05V, VCCST, VCCSA Voltage Multi-adjustment
Form Factor	Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm Solid Capacitor design
Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec) Supports Surge Protection
Expansion Slots
PCI	1 x PCI Express 3.0 x16 Slot* 2 x PCI Express 3.0 x1 Slots 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Memory
Type	DDR4
Slots	2 x DIMM Slots
Supported Memory	Dual Channel DDR4 Memory Technology Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory Supports ECC UDIMM memory modules (operate in non-ECC mode) Supports Intel Extreme Memory Profile (XMP) 2.0 15μ Gold Contact in DIMM Slots
Maximum Memory	64GB
Graphics
Graphics	- Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1 - Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 - Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD Blu-ray Disc - Three graphics output options: D-Sub, DVI-D and HDMI - Supports Triple Monitor - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 2.3 with DVI-D and HDMI 1.4 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port
Connector & Ports
HDMI	1 x HDMI Port
D-Sub (s)	1 x D-Sub port
DVI-D (s)	1 x DVI-D port
LAN Port (s)	Gigabit LAN 10/100/1000 Mb/s Giga PHY Intel I219V Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE
Supported Storage	4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17), NCQ, AHCI and Hot Plug 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
Audio	HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Ports	1 x Print Port Header 1 x COM Port Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
TPM (Trusted Platform Module )	1 x SPI TPM Header
Others
Special Features	ASRock Super Alloy - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
Warranty Information
Manufacturing Warranty	3 years

Description

ASRock H470M-HDV/M.2 10th Gen Micro ATX Motherboard

The ASRock H470M-HDV/M.2 Micro ATX Motherboard supports 10th Gen Intel Core Processors (Socket 1200). It has a 7 Power Phase Design, it offers enhanced performance with the lowest temperature for advanced gamers. Complete with all three types of most used connectors. It features Dual Channel DDR4 Memory Technology and supports DDR4 2933/ 2800/ 2666 / 2400 / 2133 non-ECC, un-buffered memory. It has 2 x DDR4 DIMM Slots. It comes with a 7.1 CH HD Audio (Realtek ALC897 Audio Codec). It supports Intel Turbo Boost Max 3.0 Technology. It comes with 128Mb AMI UEFI Legal BIOS with multilingual GUI support. It has a High-Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3)

ASRock H470M-HDV/M.2 10th Gen Motherboard has 4 x SATA3 6.0 Gb/s Connectors and supports RAID. It has a Micro ATX Form Factor and Solid Capacitor design. It offers 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3). The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs. Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

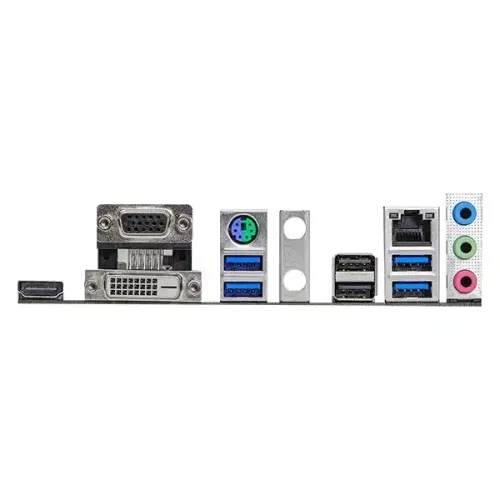

3 Graphics Outputs

The ASRock H470M-HDV/M.2 is packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution. It supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz, DVI-D with max. resolution up to 1920x1200 @ 60Hz and D-Sub with max. resolution up to 1920x1200 @ 60Hz.

The ASRock H470M-HDV/M.2 10th Gen Motherboard comes with 3 years warranty.

What is the price of ASRock H470M-HDV/M.2 10th Gen Motherboard in Bangladesh?

The latest price of ASRock H470M-HDV/M.2 10th Gen Motherboard in Bangladesh is 8,800৳. You can buy the ASRock H470M-HDV/M.2 10th Gen Motherboard at best price from our website or visit any of our showrooms.
